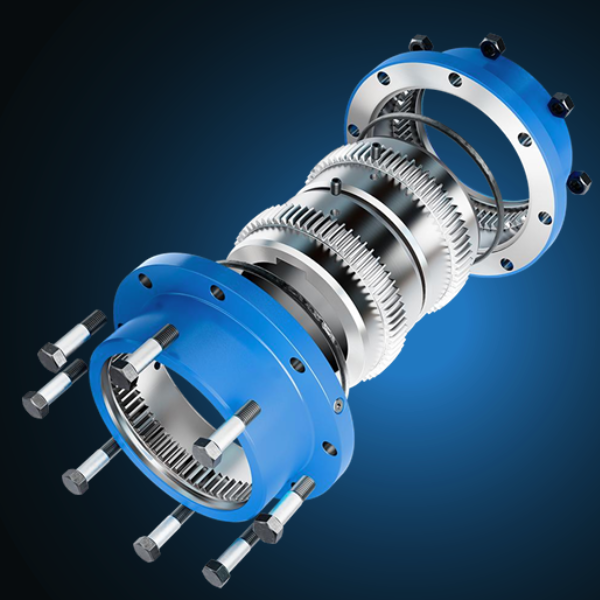

N-ZAPEX gear couplings: Setting new standards in technology and price
A technical product overview of Flender's N-ZAPEX gear coupling series (XN & XW), demonstrating next-generation power density, extreme misalignment compensation, and life-cycle cost savings.Engineered for demanding industrial applications, it highlights modular configurations, innovative sealing concepts, and reduced assembly times. Discover how Flender N-ZAPEX gear couplings maximize torque density, increase misalignment reserves, and cut total lifecycle costs.
- Topic
- Hardware
- Published
- 14 Oct 2026
The Flender N-ZAPEX product brochure details a breakthrough in mechanical power transmission, balancing technical performance with maximum cost efficiency across the equipment lifecycle. Featuring two specialized ranges—the highly standardized N-ZAPEX XN and the high-torque, modular N-ZAPEX XW—the coupling delivers maximum bore capacities and up to 60% higher angular misalignment compensation compared to predecessor models.
Engineered for heavy-duty industrial environments such as steel mills, mining kilns, cranes, and slurry pumps, N-ZAPEX reduces machine wear, cuts installation footprint, and lowers CAPEX and OPEX. With features like an innovative Hollow O-ring seal for fast maintenance and EcoVadis Platinum sustainability recognition, Flender sets a new baseline for drive components.
Key Highlights:
Maximum Power Density & Compactness: Large bore diameters allow engineers to select smaller coupling sizes, saving installation space, weight, and initial investment costs.
Enhanced Misalignment Capacities: Offers up to 60% more misalignment compensation in the XN series and 30% more in the XW series compared to legacy designs.
N-ZAPEX XN Standard Series: Covers torques from 1,400 Nm to 245,000 Nm across sizes 87 to 458, optimized for 100% catalog standardization.
N-ZAPEX XW Heavy-Duty Series: Transmits torques up to 10,000,000 Nm across sizes 160 to 1676 for demanding industrial applications.
Innovative Hollow O-Ring Seal: Patented sealing concept on the XW series enables quick, cost-effective replacement without cutting, drastically reducing maintenance downtime.
CAPEX and OPEX Optimization: Compact designs reduce loads on machine bearings while modularity slashes spare parts inventory complexity.
Broad Industry Adaptability: Tailored for steel mills, cement kilns, mining operations, cranes, slurry pumps, and energy sector machinery.
High Angular Misalignment Tolerances: Permits angular misalignment up to 0.8° for XN and 1.3° for XW at peripheral speeds up to 70 m/s.
Hazardous Environment Ready: Fully compliant with ATEX Directive 2014/34/EU for explosive or harsh operational environments.
Versatile Modular Configurations: Available with spacers, brake discs/drums, axial float limiters, and vertical installation designs.
EcoVadis Platinum Sustainability: Manufactured by Flender, ranked in the top 1% globally for product quality and sustainable manufacturing.
